The complete outfit comprises; Complete Tool Frame;10 Reamers;4 Drilled Stakes;3 Driving Punches;1 Centering Bit;2 Centering Stakes;1 Undrilled Stake;2 Chamfering Tools;4 Pivot Cutters;1 Jacob Chuck
New improved version

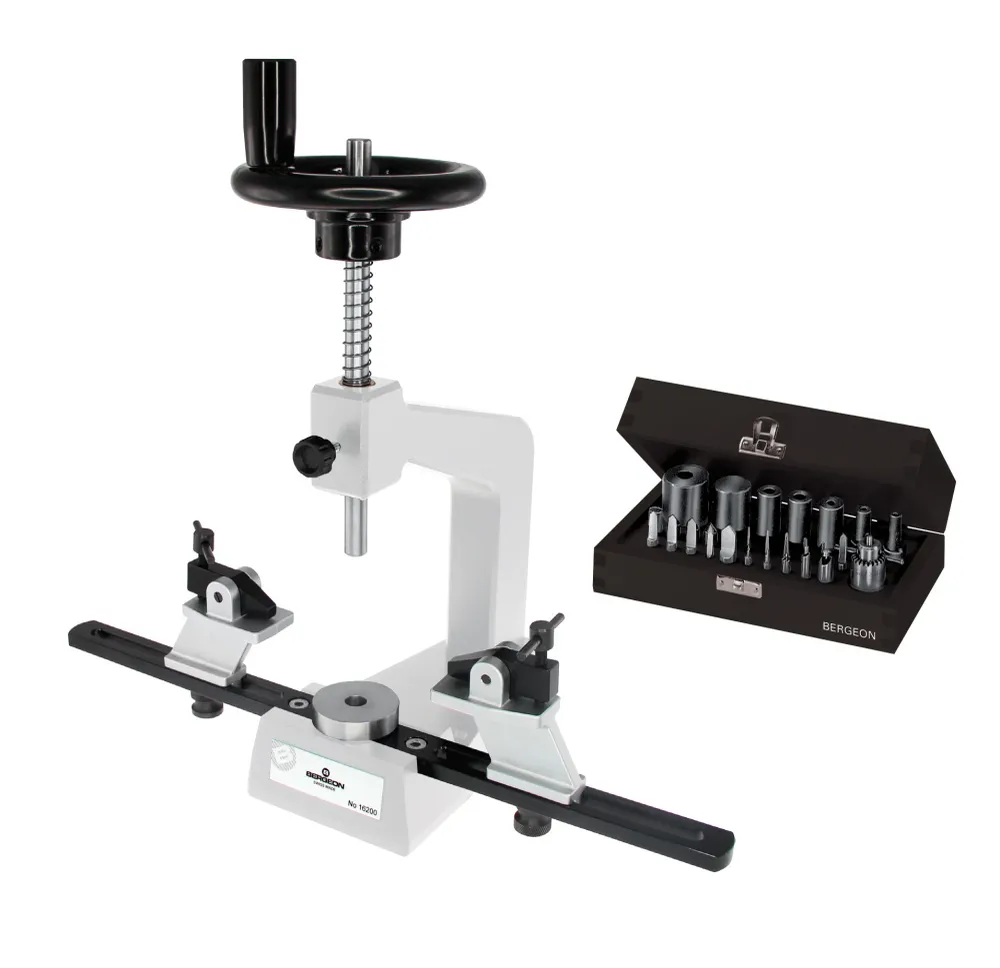

- Bushing tool that allows the centring, milling and reaming of clock plates
- Can remove and set brass or bronze bushings (including on very large clocks such as ”comtoise” or ”Morbier” clocks).
- Black anodized aluminium frame
- Can hold plates from 50 to 220mm
- Practical for all clocks, from mantel clocks to grandfather clocks
- 355 x 355 x 180mm
- Bergeon 16200
Tool includes:
- Complete tool frame
- 10 Reamers: Ø1.27, 1.97, 2.47, 2.97, 3.47, 4.47, 5.47, 6.47, 7.47 & 8.47mm
- 4 Drilled stakes: Ø8 x 3, 10 x 5, 16 x 8 & 30 x 10mm (stake x hole)
- 3 Driving punches: Ø3, 6 & 9mm
- 1 Centring bit
- 2 Centring stakes: Ø16 x 4 & 16 x 9mm (stake x point)
- 1 Undrilled stake: Ø25mm
- 2 Chamfering tools: Ø4 & 10mm
- 5 Pivot cutters: Ø2.20 x 0.40, 3.00 x 0.70, 5.00 x 1.50, 6.00 x 3.00 & 9.00 x 5.00mm (cutter x pivot)
- 1 Jacob chuck: Opening 0 to 4mm
